HT Cables: Applications, Types, and Installation Basics

Electricity plays a major role in modern life. From industries and commercial buildings to power distribution networks, reliable electrical systems are essential for smooth operations. Different types of cables are used to carry electrical power safely from one location to another.

Among these power transmission solutions, HT Cables are widely used in electrical distribution systems where medium to high voltage power transfer is required. These cables help ensure safe, efficient, and uninterrupted power flow across industrial plants, substations, and infrastructure projects.

Understanding the applications, types, and installation basics of HT cables is important for engineers, contractors, facility managers, and anyone involved in electrical infrastructure projects. This article explains everything in simple and easy-to-understand language.

What Are HT Cables?

HT Cables, or High Tension Cables, are electrical cables designed to transmit electricity at higher voltage levels. These cables are generally used for voltage ratings above 1 kV and can handle significant electrical loads over long distances.

The primary purpose of HT cables is to transport electrical power efficiently while minimizing energy losses. They are specially designed with advanced insulation materials that provide protection against electrical leakage, environmental conditions, and mechanical damage.

HT cables are commonly used in:

• Industrial facilities
• Power generation plants
• Electrical substations
• Renewable energy projects
• Commercial complexes
• Infrastructure developments

These cables are engineered to deliver reliable performance even under demanding operating conditions.

Why HT Cables Are Important

Modern electrical networks require safe and efficient power transmission. HT cables contribute significantly to achieving this goal.

Some major benefits include:

Efficient Power Transmission

HT cables reduce power losses during transmission, making them suitable for long-distance electricity distribution.

Improved Reliability

Their strong insulation and robust construction help ensure consistent electrical performance.

Enhanced Safety

HT cables are designed to withstand high voltage levels safely, reducing the risk of electrical faults.

Durability

These cables can perform effectively for many years when properly installed and maintained.

Space Optimization

Underground HT cable systems often require less space compared to overhead transmission lines.

Main Components of HT Cables

Understanding the structure of HT cables helps explain their performance and reliability.

1. Conductor

The conductor carries electrical current. Copper and aluminum are the most commonly used conductor materials.

Copper Conductors:

• High conductivity
• Excellent performance
• Higher cost

Aluminum Conductors:

• Lightweight
• Economical
• Suitable for many industrial applications

2. Conductor Screen

This layer helps distribute the electric field evenly around the conductor.

3. Insulation Layer

The insulation prevents current leakage and protects the cable from electrical breakdown.

Common insulation materials include:

• XLPE (Cross-Linked Polyethylene)
• EPR (Ethylene Propylene Rubber)

4. Insulation Screen

This layer ensures uniform electrical stress distribution.

5. Metallic Shield

The shield protects the cable and helps manage fault currents.

6. Outer Sheath

The outer protective layer guards against:

• Moisture
• Chemicals
• Mechanical damage
• UV exposure

Types of HT Cables

Several types of HT cables are available depending on voltage requirements and operating conditions.

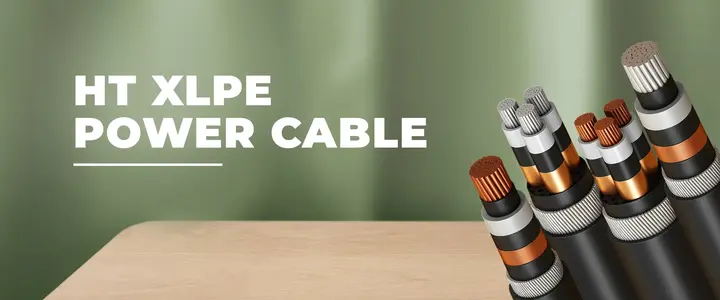

XLPE Insulated HT Cables

Cross-Linked Polyethylene (XLPE) cables are among the most widely used HT cables today.

Advantages

• High temperature resistance
• Low dielectric losses
• Long service life
• Excellent electrical properties

Applications

• Industrial plants
• Power distribution systems
• Infrastructure projects
• Renewable energy facilities

PVC Insulated HT Cables

Polyvinyl Chloride (PVC) insulated cables are used in certain medium-voltage applications.

Advantages

• Cost-effective
• Good flexibility
• Easy installation

Applications

• Commercial buildings
• Light industrial installations

EPR Insulated HT Cables

Ethylene Propylene Rubber insulation offers excellent flexibility and electrical performance.

Advantages

• Moisture resistance
• Flexibility
• Good thermal properties

Applications

• Mining operations
• Industrial environments
• Specialized electrical installations

Armoured HT Cables

These cables include an additional protective armor layer.

Advantages

• Increased mechanical protection
• Better resistance to physical damage
• Suitable for underground installations

Applications

• Underground cable networks
• Industrial sites
• Outdoor installations

Unarmoured HT Cables

These cables do not include armor protection.

Advantages

• Lightweight
• Easier handling
• Lower installation cost

Applications

• Indoor installations
• Cable trays
• Protected environments

Applications of HT Cables

HT cables are used across numerous sectors because of their ability to handle higher voltages efficiently.

Power Generation Plants

Power plants rely on HT cables for transmitting generated electricity to substations and distribution systems.

These facilities include:

• Thermal power plants
• Hydroelectric plants
• Solar power plants
• Wind energy projects

Electrical Substations

Substations use HT cables for:

• Power distribution
• Voltage transformation systems
• Grid connectivity

Reliable cable performance is essential for uninterrupted electricity supply.

Industrial Manufacturing Facilities

Large industries consume substantial amounts of electricity.

HT cables are commonly used in:

• Steel plants
• Cement factories
• Chemical industries
• Manufacturing units

They help deliver power to heavy machinery and production equipment.

Commercial Complexes

Modern commercial facilities often require high-capacity electrical systems.

Examples include:

• Shopping malls
• Business parks
• Data centers
• Airports

HT cables ensure efficient distribution of electrical energy within these facilities.

Renewable Energy Projects

Renewable energy installations use HT cables extensively.

Examples include:

• Solar farms
• Wind farms
• Hybrid energy systems

These cables help transfer generated electricity to the main power grid.

Infrastructure Projects

Large infrastructure developments depend on reliable electrical networks.

Applications include:

• Metro rail systems
• Railway electrification
• Smart cities
• Highway lighting systems

HT cables support the power requirements of these projects.

Factors to Consider When Selecting HT Cables

Choosing the right cable is critical for safety and performance.

Voltage Rating

Always select a cable that matches the system voltage requirements.

Current Carrying Capacity

The cable should safely handle the expected electrical load.

Installation Environment

Consider environmental factors such as:

• Temperature
• Humidity
• Chemical exposure
• Mechanical stress

Conductor Material

Choose between copper and aluminum based on:

• Budget
• Performance needs
• Installation conditions

Short Circuit Capacity

The cable must withstand potential fault currents.

Compliance Standards

Ensure the cable meets applicable national and international standards.

HT Cable Installation Basics

Proper installation is essential for long-term performance and safety.

Site Assessment

Before installation:

• Evaluate site conditions
• Identify potential hazards
• Plan cable routes carefully

A detailed assessment helps avoid future issues.

Cable Route Planning

Effective route planning improves system reliability.

Consider:

• Accessibility
• Future maintenance
• Environmental conditions
• Safety requirements

Avoid unnecessary bends and obstacles.

Proper Cable Handling

HT cables should be handled carefully during transportation and installation.

Important precautions:

• Avoid excessive pulling force
• Prevent sharp bends
• Protect against physical damage
• Follow manufacturer guidelines

Improper handling may damage insulation and reduce cable life.

Trench Preparation

For underground installations:

• Prepare trenches properly
• Maintain required depth
• Ensure adequate bedding materials

A well-prepared trench provides better protection and stability.

Cable Laying

During cable laying:

• Follow recommended bending radius
• Maintain proper spacing
• Avoid twisting the cable

Correct installation helps preserve cable integrity.

Jointing and Termination

Cable joints and terminations are critical parts of any HT cable system.

Proper procedures include:

• Using approved accessories
• Following installation standards
• Ensuring moisture protection
• Performing quality inspections

Poor jointing can cause electrical failures.

Earthing and Grounding

Effective grounding improves system safety.

Benefits include:

• Fault protection
• Equipment safety
• Reduced electrical hazards

Proper grounding should always comply with electrical regulations.

Common Installation Mistakes to Avoid

Many cable failures result from installation errors.

Incorrect Cable Selection

Using a cable with inadequate ratings can lead to overheating and failure.

Excessive Bending

Sharp bends may damage internal cable components.

Poor Jointing Practices

Improper joints can create weak points in the electrical system.

Inadequate Protection

Failing to protect cables from environmental or mechanical damage may shorten service life.

Lack of Testing

Skipping testing procedures can allow hidden defects to remain undetected.

Testing and Commissioning of HT Cables

Before energizing a cable system, thorough testing is necessary.

Insulation Resistance Test

This test verifies insulation quality and identifies possible weaknesses.

Continuity Test

Ensures that conductors are properly connected throughout the cable length.

High Voltage Test

Confirms the cable's ability to withstand operating voltages safely.

Sheath Integrity Test

Checks the condition of the outer protective sheath.

Testing helps ensure reliable operation and minimizes future failures.

Maintenance Tips for HT Cables

Regular maintenance improves system reliability and extends cable life.

Conduct Routine Inspections

Inspect for:

• Physical damage
• Moisture ingress
• Corrosion
• Overheating signs

Monitor Electrical Performance

Regular monitoring helps identify potential issues early.

Maintain Cable Records

Keep records of:

• Installation details
• Test reports
• Maintenance activities
• Repairs

Address Problems Promptly

Early corrective action can prevent major failures and costly downtime.

Future Trends in HT Cable Technology

The electrical industry continues to evolve with advancements in cable technology.

Some emerging trends include:

Improved Insulation Materials

New materials offer higher efficiency and longer service life.

Smart Monitoring Systems

Sensors can monitor cable health in real time.

Increased Renewable Energy Integration

Growing renewable energy projects are increasing demand for reliable HT cable systems.

Enhanced Environmental Performance

Manufacturers are developing more sustainable cable solutions.

These innovations will continue to improve power transmission efficiency and reliability.

Conclusion

HT cables are an essential part of modern electrical infrastructure. They provide safe, reliable, and efficient power transmission across industries, substations, commercial facilities, and renewable energy projects. Understanding their types, applications, and installation basics helps ensure better performance, safety, and long-term reliability.

Whether used in industrial operations, infrastructure development, or power distribution networks, proper selection and installation of HT cables are critical for successful project execution. For quality electrical solutions and industry expertise, Prabha Power continues to support modern power infrastructure requirements with dependable products and services.
